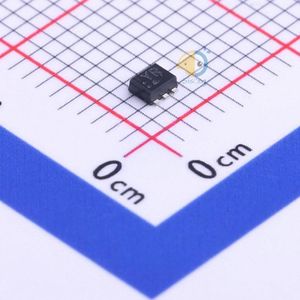

MCH6342-TL-W
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 6-SMD, Flat Leads |
| Datasheet | MCH6342 |
| Description | P-Channel 30V 4.5A (Ta) 1.5W (Ta) Surface Mount SC-88FL/MCPH6 |
فروشنده های MCH6342-TL-W
فروشگاهی یافت نشد
مشخصات MCH6342-TL-W
- RoHS true
- Type P Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi MCH6342-TL-W
- Power Dissipation (Pd) 1.5W
- Drain Source Voltage (Vdss) 30V
- Continuous Drain Current (Id) 4.5A
- Gate Threshold Voltage (Vgs(th)@Id) 1.3V@1mA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 73mΩ@4.5V,2A
- Package SC-88FL(MCPH-6)
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type P-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 4.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs 73mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id 1.3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs 8.6nC @ 4.5V
- Vgs (Max) ±10V
- Input Capacitance (Ciss) (Max) @ Vds 650pF @ 10V
- FET Feature -
- Power Dissipation (Max) 1.5W (Ta)
- Operating Temperature 150°C (TJ)
- Mounting Type Surface Mount
- Supplier Device Package SC-88FL/MCPH6
- Package / Case 6-SMD, Flat Leads
- Base Part Number MCH63
- detail P-Channel 30V 4.5A (Ta) 1.5W (Ta) Surface Mount SC-88FL/MCPH6
