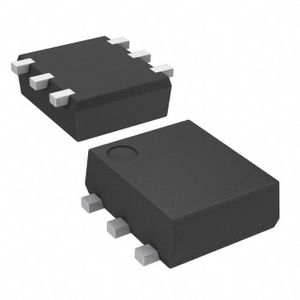

MCH6663-TL-W
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 6-SMD, Flat Leads |
| Datasheet | MCH6663 |
| Description | Mosfet Array N and P-Channel 30V 1.8A, 1.5A 800mW Surface Mount SC-88FL/MCPH6 |
فروشنده های MCH6663-TL-W
فروشگاهی یافت نشد
مشخصات MCH6663-TL-W
- RoHS true
- Type -
- Category Triode/MOS Tube/Transistor/MOSFETs
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 800mW
- Total Gate Charge (Qg@Vgs) 2nC@10V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 88pF@10V
- Continuous Drain Current (Id) 1.8A;1.5A
- Gate Threshold Voltage (Vgs(th)@Id) 2.6V@1mA
- Reverse Transfer Capacitance (Crss@Vds) -
- Drain Source On Resistance (RDS(on)@Vgs,Id) 188mΩ@900mA,10V
- Package SC-88(MCPH6)
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N and P-Channel
- FET Feature Logic Level Gate, 4V Drive
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 1.8A, 1.5A
- Rds On (Max) @ Id, Vgs 188mOhm @ 900mA, 10V
- Vgs(th) (Max) @ Id 2.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs 2nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds 88pF @ 10V
- Power - Max 800mW
- Mounting Type Surface Mount
- Package / Case 6-SMD, Flat Leads
- Supplier Device Package SC-88FL/MCPH6
- Base Part Number MCH66
- detail Mosfet Array N and P-Channel 30V 1.8A, 1.5A 800mW Surface Mount SC-88FL/MCPH6
