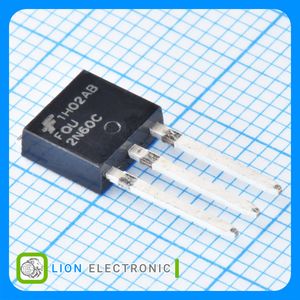

FQU2N60CTU
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-251-3 Short Leads, IPak, TO-251AA |
| Datasheet | FQD2N60C, FQU2N60C |
| Description | N-Channel 600V 1.9A (Tc) 2.5W (Ta), 44W (Tc) Through Hole I-PAK |
فروشنده های FQU2N60CTU
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FQU2N60CTU
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FQU2N60CTU
- Power Dissipation (Pd) 2.5W
- Drain Source Voltage (Vdss) 600V
- Continuous Drain Current (Id) 1.9A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 4.7Ω@10V,950mA
- Package TO-251-3
- Manufacturer onsemi
- Series QFET®
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 600V
- Current - Continuous Drain (Id) @ 25°C 1.9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 4.7Ohm @ 950mA, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 12nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 235pF @ 25V
- FET Feature -
- Power Dissipation (Max) 2.5W (Ta), 44W (Tc)
- Operating Temperature -55°C ~ 150°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package I-PAK
- Package / Case TO-251-3 Short Leads, IPak, TO-251AA
- Base Part Number FQU2
- detail N-Channel 600V 1.9A (Tc) 2.5W (Ta), 44W (Tc) Through Hole I-PAK
