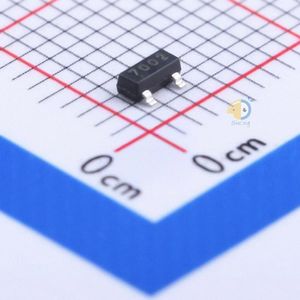

2N7002-G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | 2N7002 |
| Description | N-Channel 60V 115mA (Tj) 360mW (Ta) Surface Mount SOT-23 (TO-236AB) |
فروشنده های 2N7002-G
فروشگاهی یافت نشد
مشخصات 2N7002-G
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi 2N7002-G
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 200mW
- Input Capacitance (Ciss@Vds) 50pF@25V
- Continuous Drain Current (Id) 115mA
- Gate Threshold Voltage (Vgs(th)@Id) 2.5V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 7.5Ω@500mA,10V
- Package SOT-23-3
- Manufacturer onsemi
- Type N Channel
- Drain Source Voltage (Vdss) 60V
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 60V
- Current - Continuous Drain (Id) @ 25°C 115mA (Tj)
- Drive Voltage (Max Rds On, Min Rds On) 5V, 10V
- Rds On (Max) @ Id, Vgs 7.5Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id 2.5V @ 250µA
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 50pF @ 25V
- FET Feature -
- Power Dissipation (Max) 360mW (Ta)
- Mounting Type Surface Mount
- Supplier Device Package SOT-23 (TO-236AB)
- Package / Case TO-236-3, SC-59, SOT-23-3
- detail N-Channel 60V 115mA (Tj) 360mW (Ta) Surface Mount SOT-23 (TO-236AB)
