دیتاشیت LV8736V-TLM-H

LV8736V

مشخصات دیتاشیت

نام دیتاشیت LV8736V
حجم فایل 372.107 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت LV8736V

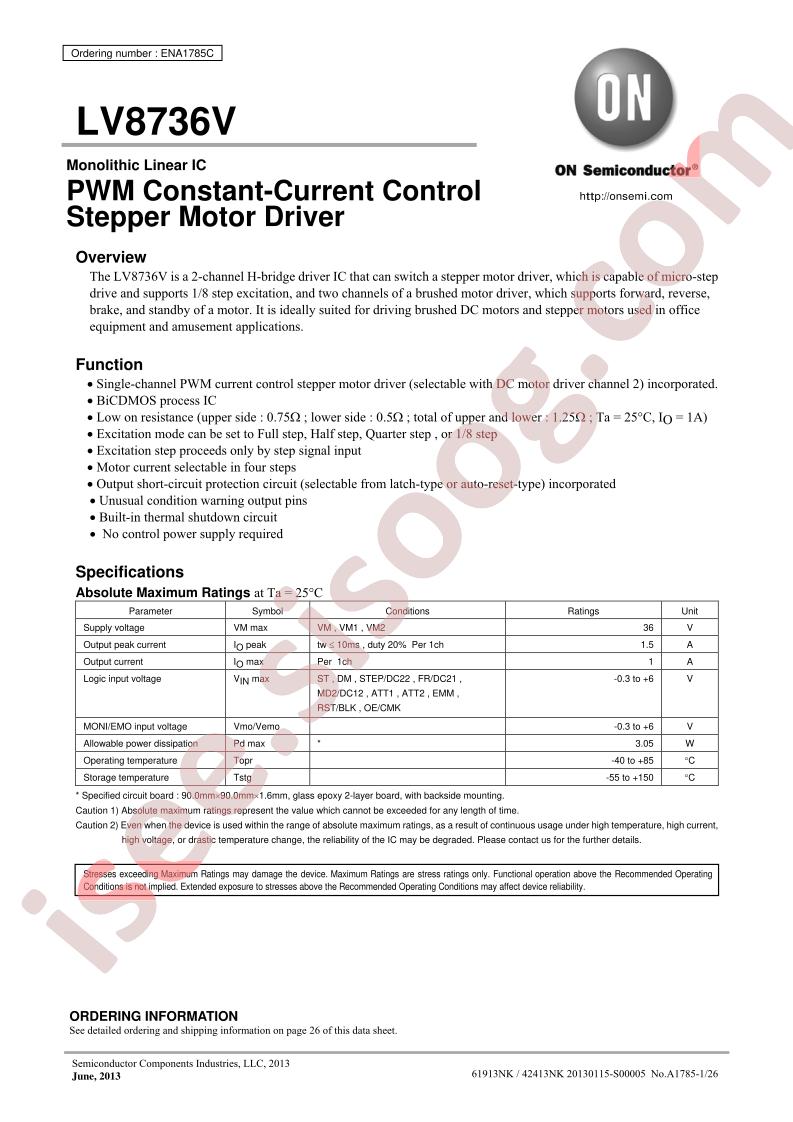

LV8736V Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: Parallel
  • Technology: BiCDMOS
  • Step Resolution: 1, 1/2, 1/4, 1/8
  • Applications: General Purpose
  • Current - Output: 1A
  • Voltage - Supply: 0V ~ 5.5V
  • Voltage - Load: 9V ~ 32V
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 44-LSSOP (0.220", 5.60mm Width) Exposed Pad
  • Supplier Device Package: 44-SSOP
  • Base Part Number: LV873
  • detail: Bipolar Motor Driver BiCDMOS Parallel 44-SSOP
