دیتاشیت CPH5517-TL-E

CPH5517

مشخصات دیتاشیت

نام دیتاشیت CPH5517
حجم فایل 409.251 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت CPH5517

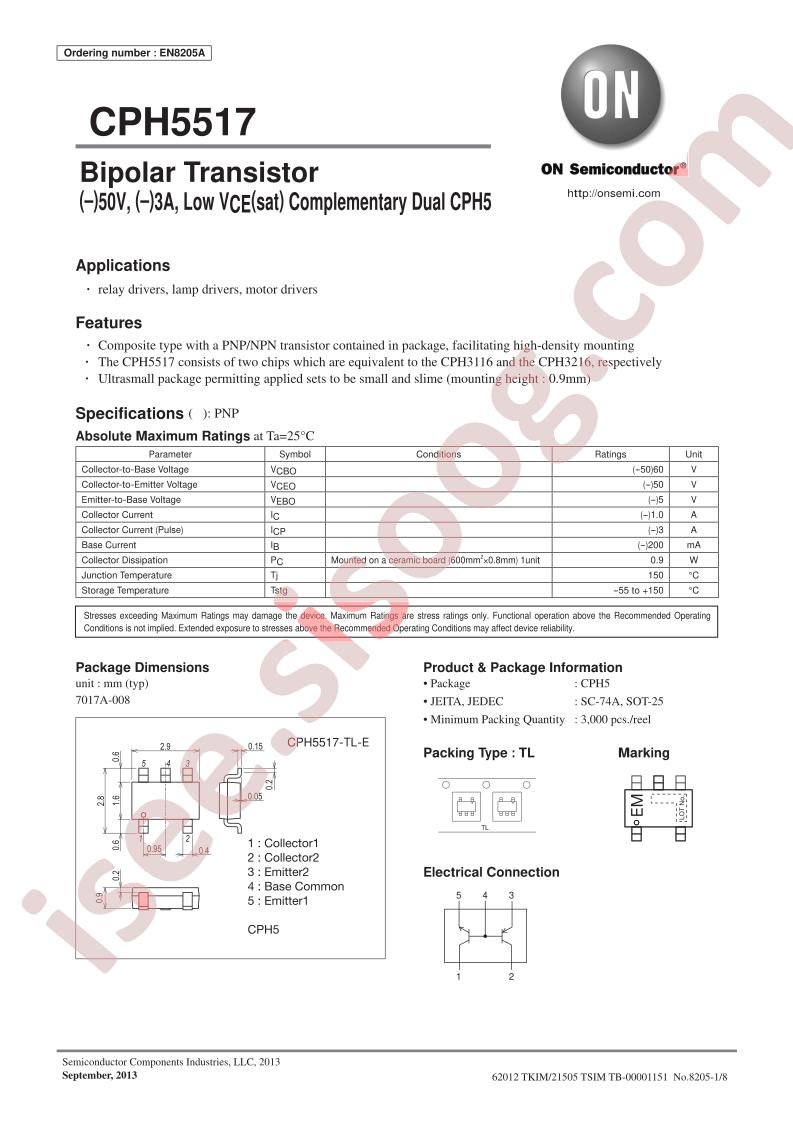

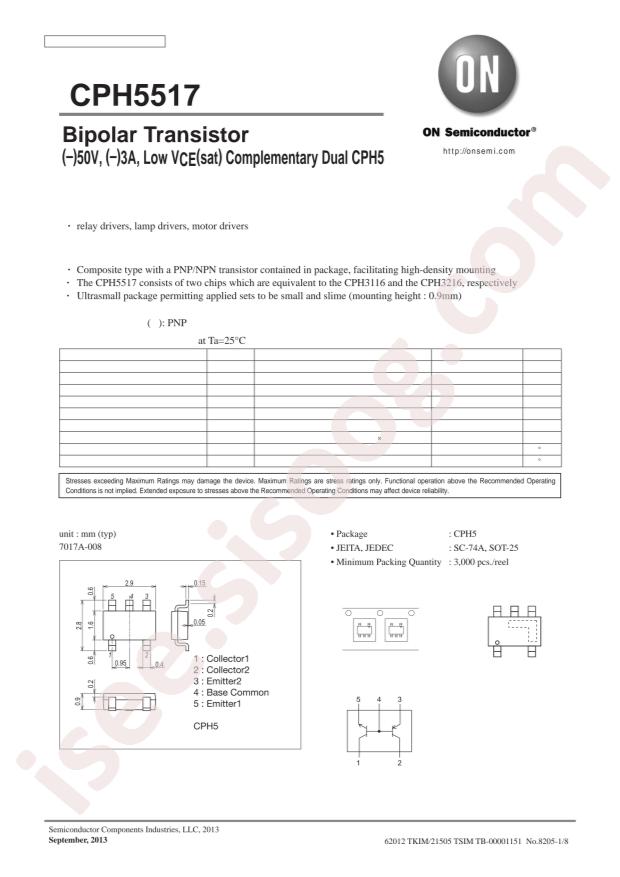

CPH5517 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: onsemi CPH5517-TL-E
  • Transistor Type: 1PCSNPN&1PCSPNP(共基极)
  • Collector Current (Ic): 1A
  • Power Dissipation (Pd): 900mW
  • Transition Frequency (fT): 420MHz
  • DC Current Gain (hFE@Ic,Vce): 200@100mA,2V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 430mV@10mA,500mA
  • Package: CPH-5
  • Manufacturer: onsemi
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 1A
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 430mV @ 10mA, 500mA
  • Current - Collector Cutoff (Max): 100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 100mA, 2V
  • Power - Max: 900mW
  • Frequency - Transition: 420MHz
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-5 Thin, TSOT-23-5
  • Supplier Device Package: 5-CPH
  • Base Part Number: CPH551
  • detail: Bipolar (BJT) Transistor Array NPN, PNP (Common Base) 50V 1A 420MHz 900mW Surface Mount 5-CPH
