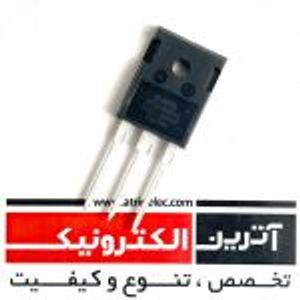

IXFH80N65X2

IXFH80N65X2

IXFH80N65X2

N-Channel 650V 80A (Tc) 890W (Tc) Through Hole TO-247

در 2 فروشگاه

تغییرات قیمت
مشخصات
  • IXYSManufacturer
  • HiPerFET™Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 650VDrain to Source Voltage (Vdss)
  • 80A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 40mOhm @ 40A, 10VRds On (Max) @ Id, Vgs
  • 5.5V @ 4mAVgs(th) (Max) @ Id
  • 143nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 8245pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 890W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-247Supplier Device Package
  • TO-247-3Package / Case
