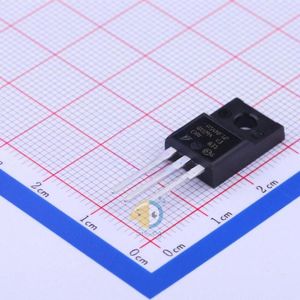

STP14NF12FP
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | STMicroelectronics |
| Package | TO-220-3 |
| Datasheet | STP14NF12FP |
| Description | N-Channel 120V 14A (Tc) 60W (Tc) Through Hole TO-220-3 |
فروشنده های STP14NF12FP
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات STP14NF12FP
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STP14NF12FP
- Power Dissipation (Pd) 25W
- Drain Source Voltage (Vdss) 120V
- Continuous Drain Current (Id) 8.5A
- Gate Threshold Voltage (Vgs(th)@Id) 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 180mΩ@10V,7A
- Package TO-220F-3
- Manufacturer STMicroelectronics
- Series STripFET™ II
- Packaging Tube
- Part Status Obsolete
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 120V
- Current - Continuous Drain (Id) @ 25°C 14A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 180mOhm @ 7A, 10V
- Vgs(th) (Max) @ Id 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 21nC @ 10V
- Vgs (Max) ±20V
- Input Capacitance (Ciss) (Max) @ Vds 460pF @ 25V
- FET Feature -
- Power Dissipation (Max) 60W (Tc)
- Operating Temperature -55°C ~ 175°C (TJ)
- Mounting Type Through Hole
- Supplier Device Package TO-220-3
- Package / Case TO-220-3
- Base Part Number STP14N
- detail N-Channel 120V 14A (Tc) 60W (Tc) Through Hole TO-220-3
