دیتاشیت HGTP3N60A4D TO-220 IGBT

TO220B03 Pkg Drawing

مشخصات دیتاشیت

نام دیتاشیت TO220B03 Pkg Drawing
حجم فایل 99.003 کیلوبایت
نوع فایل pdf
تعداد صفحات 1

دانلود دیتاشیت TO220B03 Pkg Drawing

TO220B03 Pkg Drawing Datasheet

مشخصات

  • Manufacturer: ON Semiconductor
  • Series: -
  • Packaging: Tube
  • Part Status: Not For New Designs
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 17A
  • Current - Collector Pulsed (Icm): 40A
  • Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 3A
  • Power - Max: 70W
  • Switching Energy: 37µJ (on), 25µJ (off)
  • Input Type: Standard
  • Gate Charge: 21nC
  • Td (on/off) @ 25°C: 6ns/73ns
  • Test Condition: 390V, 3A, 50Ohm, 15V
  • Reverse Recovery Time (trr): 29ns
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole

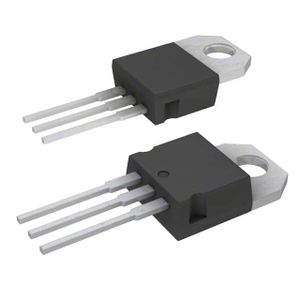

  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220-3
  • Base Part Number: HGTP3N60
  • detail: IGBT 600V 17A 70W Through Hole TO-220-3
