دیتاشیت HGTP20N60A4 TO-220-AB IGBT
مشخصات دیتاشیت
| نام دیتاشیت | HGTG,HGTP20N60A4 |
|---|---|
| حجم فایل | 229.9 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت HGTG,HGTP20N60A4 |

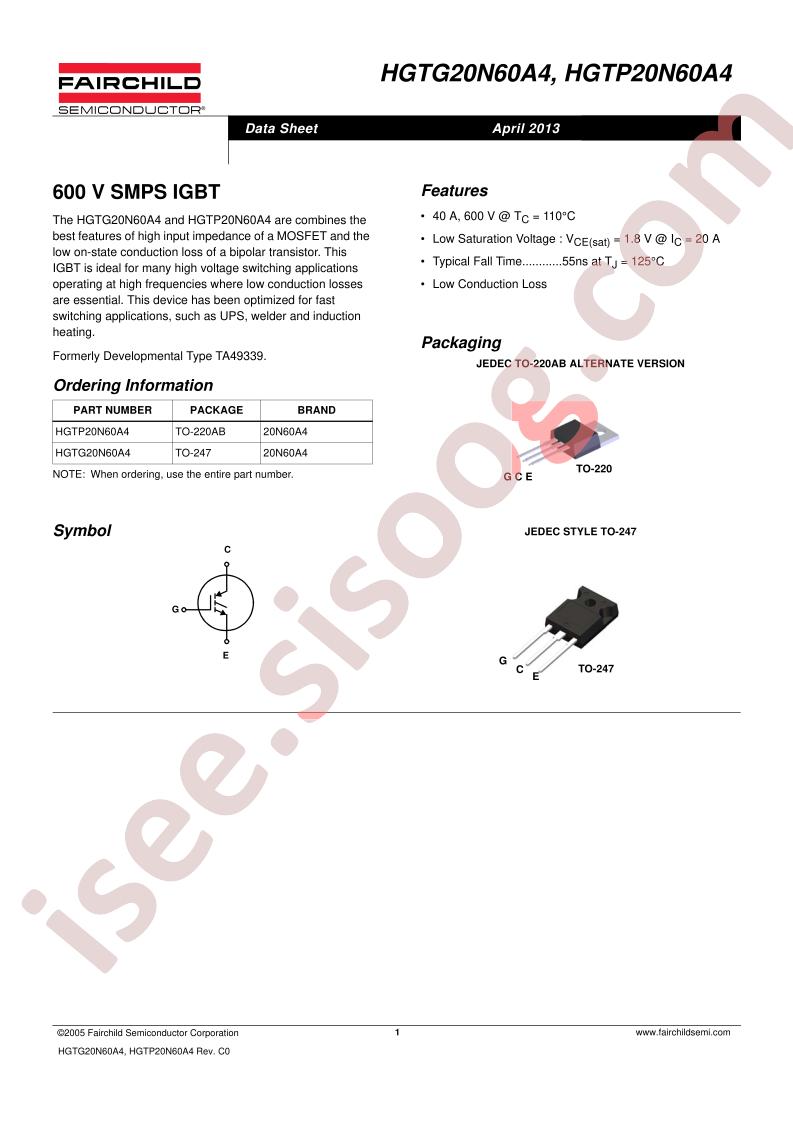

HGTG,HGTP20N60A4 Datasheet |
|---|
مشخصات
- Manufacturer: ON Semiconductor
- Series: -
- Packaging: Tube
- Part Status: Not For New Designs
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600V
- Current - Collector (Ic) (Max): 70A
- Current - Collector Pulsed (Icm): 280A
- Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 20A
- Power - Max: 290W
- Switching Energy: 105µJ (on), 150µJ (off)
- Input Type: Standard
- Gate Charge: 142nC
- Td (on/off) @ 25°C: 15ns/73ns
- Test Condition: 390V, 20A, 3Ohm, 15V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220-3
- Base Part Number: HGTP20N60
- detail: IGBT 600V 70A 290W Through Hole TO-220-3
