دیتاشیت FQU2N90TU-WS

FQD2N90/FQU2N90

مشخصات دیتاشیت

نام دیتاشیت FQD2N90/FQU2N90
حجم فایل 2086.332 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت FQD2N90/FQU2N90

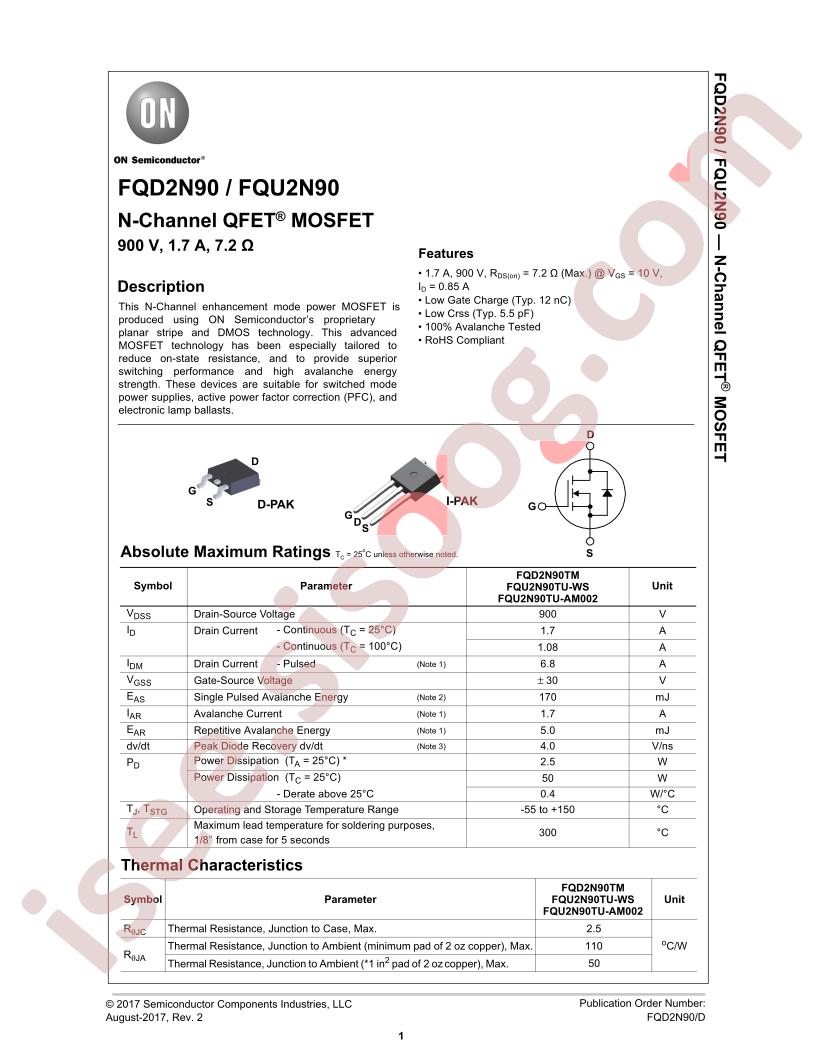

FQD2N90/FQU2N90 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: onsemi FQU2N90TU-WS
  • Package: TO-251-3
  • Manufacturer: onsemi
  • Series: QFET®
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 900V
  • Current - Continuous Drain (Id) @ 25°C: 1.7A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 7.2Ohm @ 850mA, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 2.5W (Ta), 50W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: I-PAK
  • Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
  • Base Part Number: FQU2
  • detail: N-Channel 900V 1.7A (Tc) 2.5W (Ta), 50W (Tc) Through Hole I-PAK
