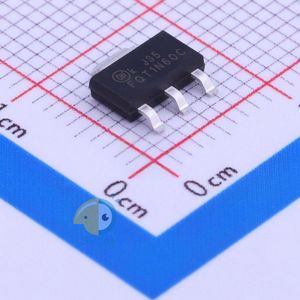

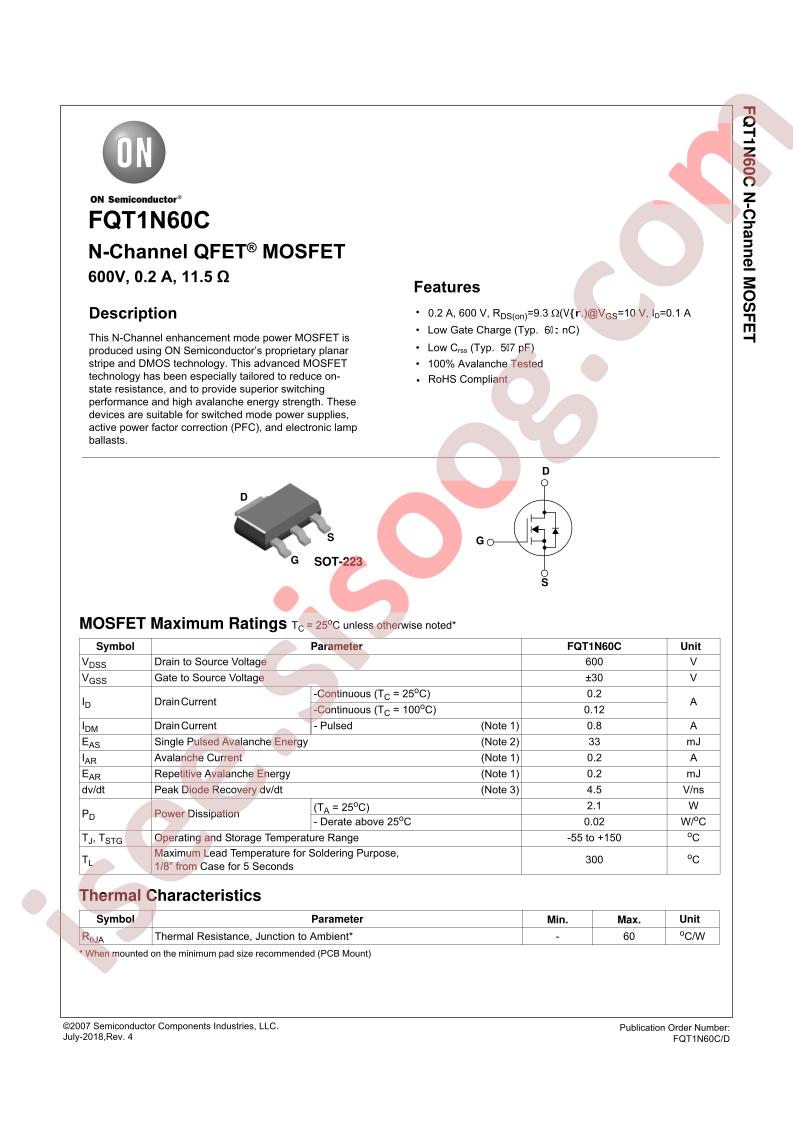

دیتاشیت FQT1N60CTF-WS
مشخصات دیتاشیت
| نام دیتاشیت |
FQT1N60C
|
| حجم فایل |
1160.193
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi FQT1N60CTF-WS
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.1W
-
Total Gate Charge (Qg@Vgs):
6.2nC@10V
-
Drain Source Voltage (Vdss):
600V
-
Input Capacitance (Ciss@Vds):
170pF@25V
-
Continuous Drain Current (Id):
200mA
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
11.5Ω@10V,100mA
-
Package:
SOT-223-4
-
Manufacturer:
onsemi
-
Series:
QFET®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
200mA (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
11.5Ohm @ 100mA, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6.2nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
170pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
2.1W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223-4
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
FQT1
-
detail:
N-Channel 600V 200mA (Tc) 2.1W (Tc) Surface Mount SOT-223-4
